Main products: generator equipment, energy storage devices, and other electromechanical equipment and accessories.
5 Years
| Ask Lasest Price | |
| Brand Name : | KENERGY |
| Model Number : | GZ3500-SAG |
| Certification : | CE etc. |
| Price : | US$211.00 - US$278.19 per set (FOB China) |
| Payment Terms : | L/C, T/T, Western Union ... |
| Supply Ability : | 15000 sets per month |
| Delivery Time : | 10-20 Working days |

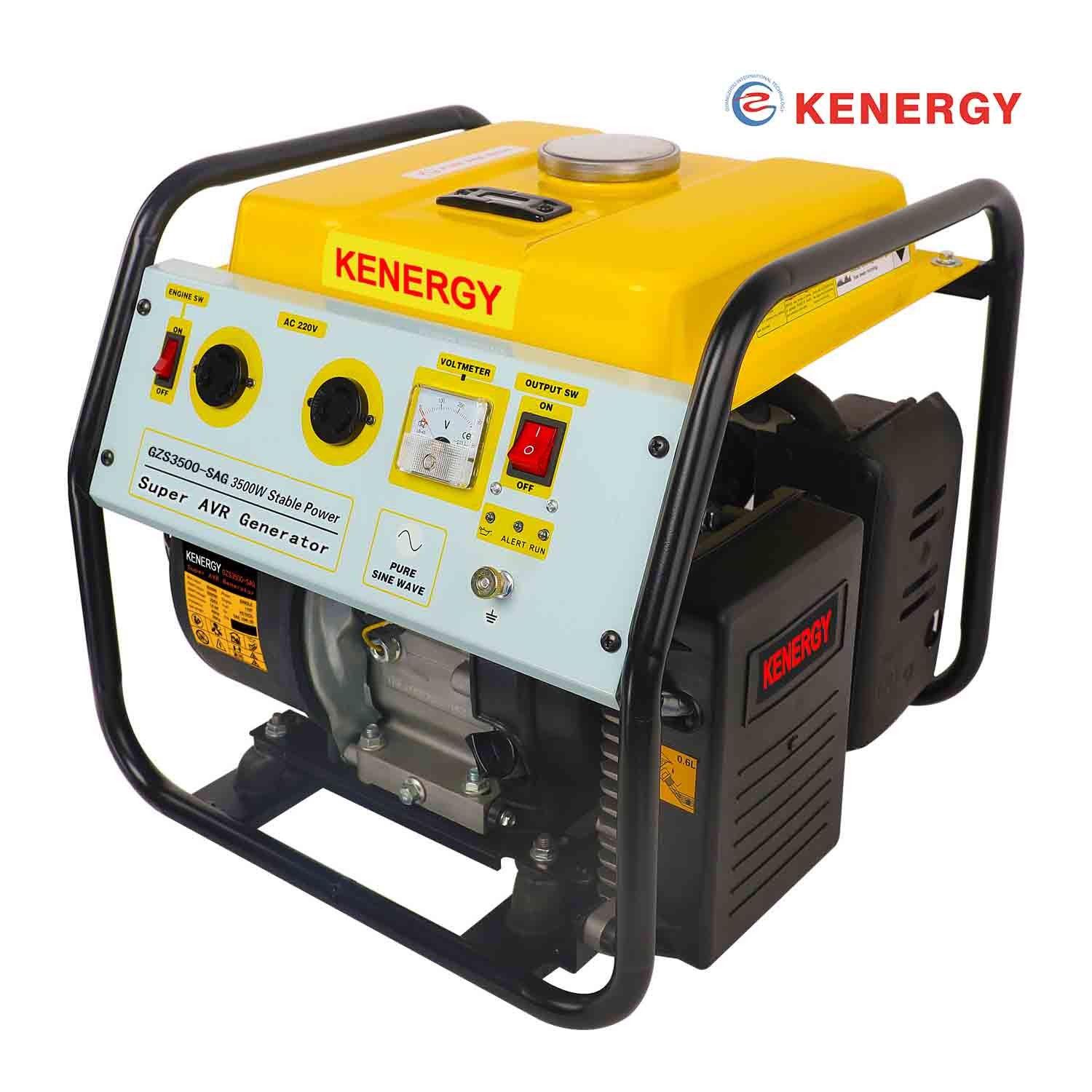

230V 50 60 HZ Energy saving inverter dynamo 3200W portable petrol AC generator
Advantages:
1. Stable Power Output
2. Load Super
3. High Fuel Efficiency
4. Low Noise
5. Smaller Size
Technical Data:
| GENSET Model | Gasoline GZ3500-SAG Super AVR Generator | ||
| Rated frequency (Hz) | 50 / 60 | Engine model | 170F (7HP) |
| Rated voltage (V) | 230 | Engine type | 1 cylinder, OHV gasoline, 4-stroke |
| Rated current (A) | 13.9 | Displacement (cc) | 212 |
| Rated speed (r/min) | 2600-3600 | Fuel capacity (L) | 5.7 |
| Rated output (W) | 3200 | Cont. running time (Hrs.) | 4.5@ rated power |
| Max. output (W) | 3500 | Starting system | Recoil starter |
| Phase number | Single | Packing size L×W×H (mm) | 430×420×420 |
| Alternator type | 100% copper winding, Permanent magnet alternator | Net / Gross weight (kg) | 28 / 30 |
| QTY 20’GP / 40’HQ (Sets) | 325 / 810 | ||
| Generator Type | Super AVR Generator (SAG) | Conventional Generator (CG) |
| Rated Power | 1100 W | 1100 W |
| Load Capacity | Load up to 1100W | Some only load up to 900W |
| Power Appliance | Power more for induction type of load like drilling machine | Comparing with SAG, no good performance on induction load |
| Output Stability | Stable | Not stable |
| Protection | When the load is over or the generator is overheating, it cut off the light to protect the generator or appliance | No such function on conventional generator |
| Fluctuation | No fluctuation in output | Volt and frequency fluctuate sometime |
| Winding | 100% Copper | 100% Copper |
| Rated Speed | Adjustable | Non-adjustable |
| Noise | when the load is small, the noise is low | The noise is almost the same level as its full load |
| Fuel Saving | Rated speed can be adjusted down to reduce fuel consumption when the load is low to save fuel | The fuel consumption is always on the full loading side, even if the load is small. |
| Pack Size | Smaller, about 60% of the size of CG | Bigger, about 1.4 times the size of SAG |
| QTY in Container | 20ft: 610pcs / 40ft: 1430 pcs | 20ft: 350pcs / 40ft: 900 pcs |
| Shipment Cost | The unit shipment cost is about 70% of CG | The unit shipment cost is about 70% of SAG |
| Total Cost | Lower | Higher than SAG if rewinding is genuine 100% copper |
Company Vedio:
Trading terms: EXW, FOB, CFR, CIF, DDU...
Payment terms: T/T, L/C, Western Union...
Transportation ways: by air, by sea, by road, by express ( DHL, UPS, EMS, TNT, FEDEX, etc.)...
Packing:
FAQ:
Q1: What's the lead time?
A: For small orders, stocks available; for big orders, lead time is about 10-20 Working days usually.
Q2: What's the warranty of our products?
A: 1 year.
Q3: What about samples?
A: Usually sample fee got to be paid by you. However, if you put mass orders later, sample fee might be deducted from cost of mass orders later.
Our services:
1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response to your question within 24 hours (Holidays Excluded)
|
|
