Brand Name : | KENERGY |
Model Number : | GZ-200 |
Certification : | CE certificate |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 5000 |
Delivery Time : | 5-10 |

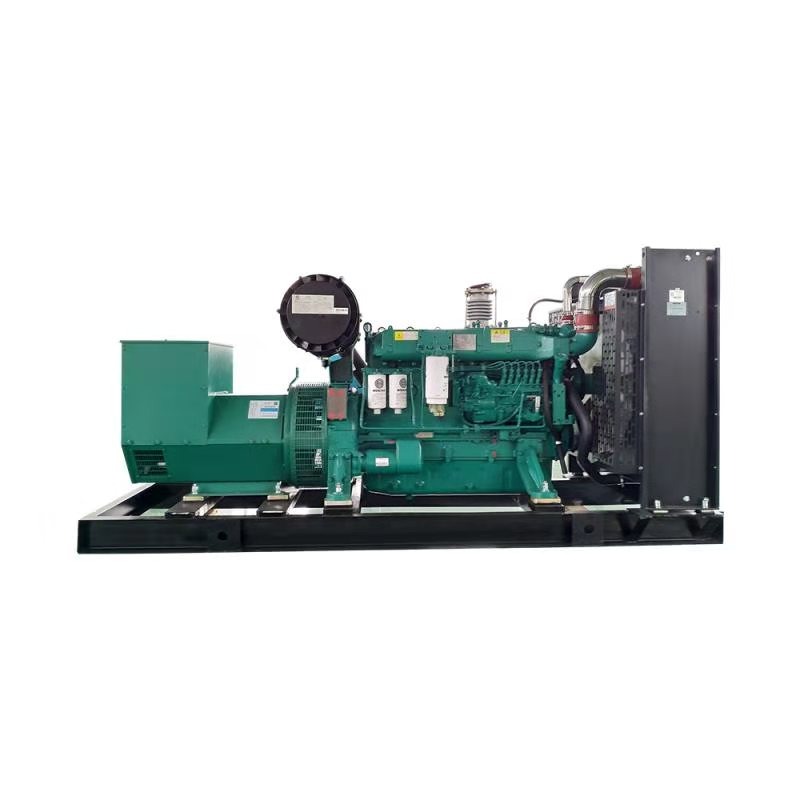

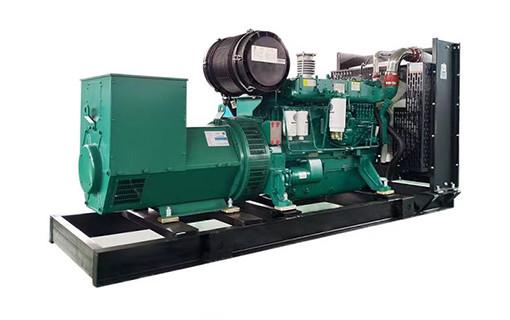

GENSET | |||||
GENSET Model : | GZD-200GF | ||||
Power (KW) | 200/250 | ||||
Rated current (A) | 360 | Output Volt (V) | 400/230 | ||
Rated frequency (Hz) | 50 | Power Factor | 0.8 | ||
Phase Number | 3 Phase 4 line | Volt Regulation | Auto Volt Constant System | ||
Gen. Set Dimension (mm) | 3000*1000*1550 | ||||
Gen. Set Weight | 2200kg | ||||
Standard | GB/T2820-2009 | ||||
Engine | |||||
Model | WP10D238E200 | Output Power (KW) | 200 | ||
Engine Structure | 6 Cylinder , 4 Stroke , Turbocharged | ||||
Cylinder/Stroke (mm) | 126×130 | Speed (rpm) | 1500 | ||
Displacement | 10 | Speed adjust | Mechanical | ||
Start | 24V DC E-starter | Cool system | Water cycle wind cooling | ||
Fuel consumption rate (100%) | 210 g/kw.h | Compression Ratio | 14:1 | ||
Alternator Alternator Alternator Alternator | |||||
Model | STC-200 | ||||
Excitation method | Brushless automatic excitation, self-heating, pure copper wire production production | ||||
Rated Power (KW) | 50 | Rated Volt | 400/220 | ||
Protection level | IP | Insulation class | H | ||
Poles | 4 | Power Factor | 0.8 | ||
Rated Currency | A | Regulation Method | AUTO AVR |
![]() |
